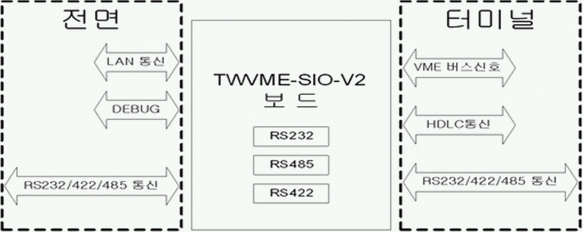

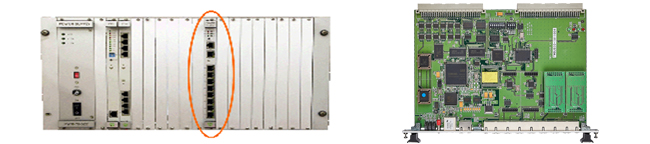

This board can be interface to VME Bus System and Serial communication devices (synchronous / asynchronous)

• Share data through access shared memory with the CPU
• Various protocol conversion function to serial communications Interface
• LAN Port and HDLC Port built-in
• RJ-45 Serial Port on the front
• RS-232C / RS-422 / RS-485 user selection per port available
• TX / RX LED status display per Port on the front

• high-speed 32-bit CPU CORE
• 50 MHz high-speed system CLOCK
• Memory : 16/32MB
• Communication speed : 1200 ~ 115200 bps
• Dial-Up Support
• Ethernet(10/100Mbps) 1 Port built-in
• HDLC(10Mbps) 2 Port built-in
• Debug(RJ-45) 1 Port built-in
• Serial Port (RS-232C/422/485)
• SIO-DST can connect and use
• VME Bus support
• Independent operation using only the CPU board
• Built-in system protection (Watch-dog function)
• Data sharing using the Dual Port Ram
