Water Pipe Network Optimization System

Home >Business> Solution > Water Pipe Network Optimization System

Sewage Process Diagnosis System

Based on the data(Real time Water Quality/Flow Measurement Data, Direct Extraction Data from Laboratories, Operational Data), the system monitors and analyzes the status of the environmental infrastructure in real time and provides the optimum operation method of the sewage treatment process, Contributing to actively control and prevention of water quality accidents

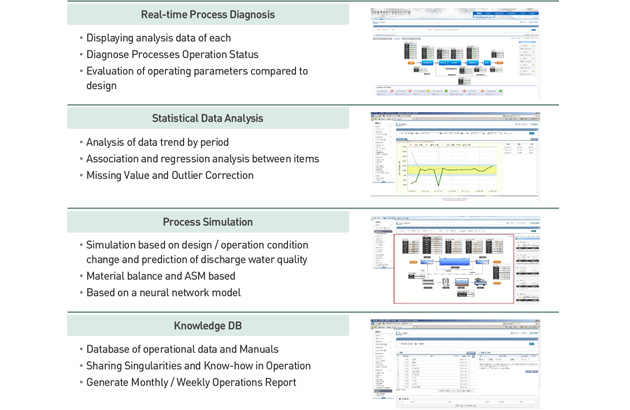

Main Function

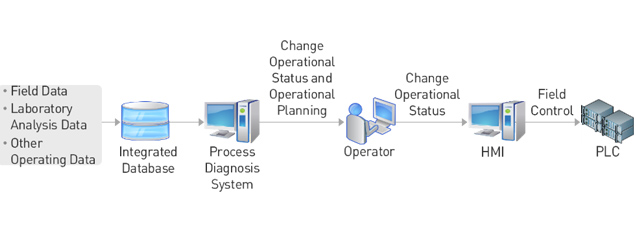

System Configuration

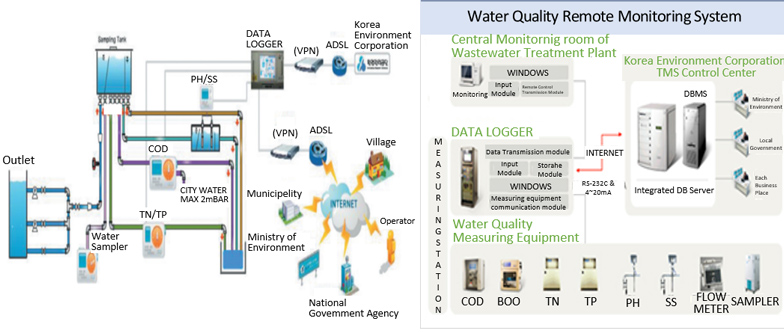

Sewage/Wastewater TMS

By analyzing the water quality flowing into the treatment plant, we can obtain the process data and predict the efficient control of the process, predict the result after the HRT time, and actively cope with the process. To do this, you can monitor the following items depending on your business.

Application Scope

  • Toxicity Monitoring
  • Process forecasting through analysis of OUR(Oxygen Uptake Rate)
  • Process response to total nitrogen/phosphorus and nutrient salt analysis
  • Nutrient salts : TN, TP, Nutrient, considered to be the main cause of eutrophication
  • The main causes of organic pollution : TOC, COD
  • Heavy metal

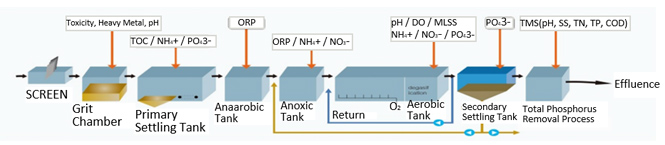

Enhanced monitoring for process control

  • Monitoring of process conditions through traditional measurement items such as pH, DO, ORP, SS
  • Control of nitrification-denitrification process by monitoring of nutrient salts(NH4,NO3)
  • Organic phosphorus / Total phosphorus monitoring to improve phosphorus removal process

Enhanced Water Quality TMS Monitoring
